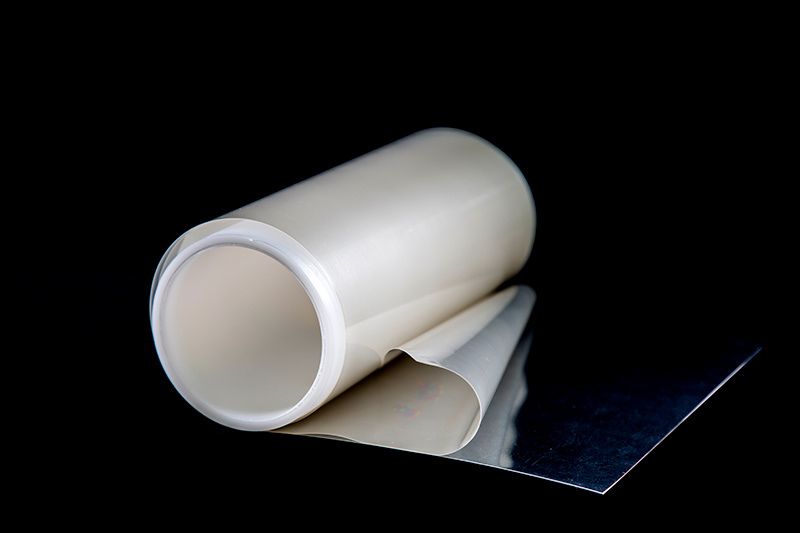

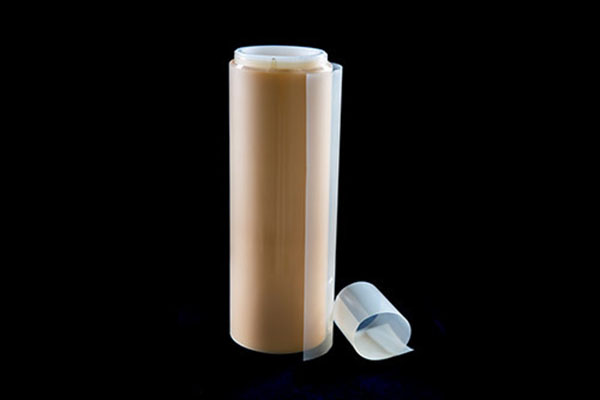

Product Introduction Of Pem Water Electrolysis:
The PEM for hydrogen production from water electrolysis we produce can be divided into PEM for industrial hydrogen production and PEM for civilian hydrogen production according to specific application scenarios. The Electrolyte Membranes for Polymers we produce has the characteristics of high conductivity, low gas permeability and high pressure resistance. The PEM for hydrogen production from water electrolysis we produce is also suitable for water electrolysis hydrogen production systems of various sizes, including renewable energy storage, laboratory research and industrial manufacturing, providing efficient solutions for users of different sizes and needs.
Product Advantages Of Pem Water Electrolysis:
Our Electrolyte Membranes for Polymers are suitable for various hydrogen production needs, such as laboratory gas supply, energy storage solutions and fuel cell hydrogen refueling stations, showing good market adaptability. Our Electrolyte Membranes for Polymers have excellent chemical and mechanical stability, which can maintain performance and extend service life under continuous operation and variable operating conditions.
Thickness And Basis Weight Properties:
Membrane Type | Thickness(microns)(um) | Weight(g/m²) |
PXWE-150W-T01 | 150 | 295 |
Physical And Other Properties:
Physical and Other Properties | Typical Value | Test Method | |
TensileTest (23℃,50%RH) | |||
Tensile Strength (MPa) | ≥28 | ≥28 | ASTM D882 |
Tensile Modulu (MPa) | ≥400 | ≥200 | ASTM D882 |
Elongation at break(%) | ≥120 | ≥200 | ASTM D882 |
Specific Gravity | 1.97 | 1.98 | |
Other Properties | Typical Value | Test Method | |
Conductivity²(S/cm) | ≥0.100 | ≥0.100 | GB/T20042.3-2022 |
Acid Capacity³(meq/g) | 1.00±0.05 | 1.00±0.05 | GB/T20042.3-2022 |
Dissolved Hydrogen Concentration | 1000 |
Hydrolytic Properties:
Hydrolytic Properties | Typical Value | Test Method | |
Water Content⁵(%) | 5.0±3.0 | 5.0±3.0 | ASTM D570 |
Water Uptake(%) | 50.0±5.0 | 50.0±5.0 | ASTM D570 |
Thickness Swelling Rate at 23℃,50%RH(%increase) | |||
Water soaked at 23℃50%RH | ≤5 | ≤18 | ASTM D756 |
Water soaked at 100℃50%RH | ≤15 | ≤30 | ASTM D756 |
Linear Expansion at 23℃,50%RH (% increase) | |||
Water soaked at 23℃50%RH | ≤5 | ≤16 | ASTM D756 |
Water soaked at 100℃50%RH | ≤18 | ≤20 | ASTM D756 |
Precautions For Transporting Pem Water Electrolysis:
Stable placement: The equipment should be placed in a stable position on the transport to avoid any risk of the equipment moving or tipping over.
Appropriate transport: Choose the appropriate transport based on the size and weight of the equipment. Larger or heavier equipment may require a dedicated transport vehicle with appropriate securing devices.
Insurance: Consider purchasing transport insurance for the equipment to prevent damage to the equipment during transportation.
Notes Of Pem Water Electrolysis:
Measurements taken with membrane conditioned to 23℃.50%RH for 24h.
Conductivity measurement at 230.100%RH.
A base titration procedure measures the equivalents of sulfonic acid group in the polymer resin,thuscalculating the acid capacity or equivalent weight of the membrane.
Water content ofmembrane conditioned to 23 ℃ and 50%RH(dry weight basis).
Water uptake fiom dry membrane to conditioned in water at 100'℃ for l hour (dry weight basis).
